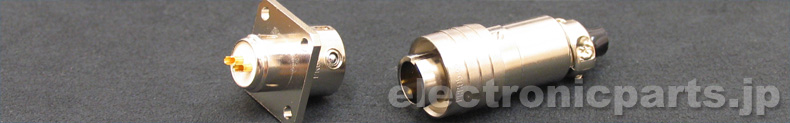

TAJIMI ELECTRONICS (TMW) EPRC05 series
Push-Pull Circular Small Connectors
EPRC05 series are smaller than the PRC03, PRC04 series, they are our original Push-Pull Locking connectors for quick and easy connection.
EPRC05 series product list
Number of contacts: 2 price list
| Model number |
Number of contacts |
Contact shape, Shell shape |
Price: JP yen |
| EPRC05-P2M |
2 |
Male Plug |
900 |
| EPRC05-P2F |
2 |
Female Plug |
1035 |
| EPRC05-R2M |
2 |
Male Bulkhead Mount Receptacle |
715 |
| EPRC05-R2F |
2 |
Female Bulkhead Mount Receptacle |
705 |
| EPRC05-RB2M |
2 |
Male Flange Mount Receptacle |
1035 |
| EPRC05-RB2F |
2 |
Female Flange Mount Receptacle |
915 |
| EPRC05-J2F |
2 |
Female Jack |
1020 |
Number of contacts: 3 price list
| Model number |
Number of contacts |
Contact shape, Shell shape |
Price: JP yen |
| EPRC05-P3M |
3 |
Male Plug |
1020 |
| EPRC05-P3F |
3 |
Female Plug |
1010 |
| EPRC05-R3M |
3 |
Male Bulkhead Mount Receptacle |
630 |
| EPRC05-R3F |
3 |
Female Bulkhead Mount Receptacle |
720 |
| EPRC05-RB3M |
3 |
Male Flange Mount Receptacle |
1080 |
| EPRC05-RB3F |
3 |
Female Flange Mount Receptacle |
1020 |
| EPRC05-J3F |
3 |
Female Jack |
1060 |
Number of contacts: 5 price list
| Model number |
Number of contacts |
Contact shape, Shell shape |
Price: JP yen |
| EPRC05-P5M |
5 |
Male Plug |
1140 |
| EPRC05-P5F |
5 |
Female Plug |
1145 |
| EPRC05-R5M |
5 |
Male Bulkhead Mount Receptacle |
880 |
| EPRC05-R5F |
5 |
Female Bulkhead Mount Receptacle |
795 |
| EPRC05-RB5M |
5 |
Male Flange Mount Receptacle |
1195 |
| EPRC05-RB5F |
5 |
Female Flange Mount Receptacle |
1270 |
| EPRC05-J5F |
5 |
Female Jack |
1250 |
Number of contacts: 6 price list
| Model number |
Number of contacts |
Contact shape, Shell shape |
Price: JP yen |
| EPRC05-P6M |
6 |
Male Plug |
1470 |
| EPRC05-P6F |
6 |
Female Plug |
1405 |
| EPRC05-R6M |
6 |
Male Bulkhead Mount Receptacle |
1080 |
| EPRC05-R6F |
6 |
Female Bulkhead Mount Receptacle |
1040 |
| EPRC05-RB6M |
6 |
Male Flange Mount Receptacle |
945 |
| EPRC05-RB6F |
6 |
Female Flange Mount Receptacle |
800 |
| EPRC05-J6F |
6 |
Female Jack |
1630 |
Number of contacts: 8 price list
| Model number |
Number of contacts |
Contact shape, Shell shape |
Price: JP yen |
| EPRC05-P8M |
8 |
Male Plug |
1640 |
| EPRC05-P8F |
8 |
Female Plug |
1615 |
| EPRC05-R8M |
8 |
Male Bulkhead Mount Receptacle |
1105 |
| EPRC05-R8F |
8 |
Female Bulkhead Mount Receptacle |
1185 |
| EPRC05-RB8M |
8 |
Male Flange Mount Receptacle |
1065 |
| EPRC05-RB8F |
8 |
Female Flange Mount Receptacle |
1060 |
| EPRC05-J8F |
8 |
Female Jack |
1945 |
Please order from the e-mail, or Fax.
When ordering, please inform of the following contents.
- The name of the company name and the person in charge
- E-mail address
- Phone number
- Address
- Model number of the product of the order
- Each amount of the product ordering
(Your company predetermined format is fine.)
About payment etc.
About payment
- Payment please bank transfer.
- Other than the product price, an exchange fee, the postage are necessary.
- Please bear the transfer fee by the customer.
About shipping.
- Shipment of goods will be after payment is confirmed.
- Shipment of the product will use the EMS
as a general rule.
- If you wish to Fedex or DHL, please be announced separately.
